AG-RXB33
    Publish time 2019-09-09 17:06

315MHz/433MHz ASK RF Superheterodyne Wireless Receiver Module with syn500 ic AG-RXB33

Specifications

ASK RF Superheterodyne Wireless Receiver Module
Frequency: 315, 433MHz
Voltage: 5v+/- 0.5v
Current: 4.1mA(5V)


Key Features

1) Sensitivity: -105dBm;

2) Working Frequency:315MHz;433MHz;

3) Power supply voltage input range:3.0-5.0V

4) Low power consumption, 5.0 V @ 5.0 MHZ, 3.7-4.1 mA; 5.0 V @ 315 MHZ, 2.1-2.5 mA continuous data transfer rate to 2.4 K (Manchester code);

5) Good selectivity and stray radiation inhibition ability, easy to through international CE/FCC certification;

6) Good capable of suppressing the vibration radiation, can work with multiple receiving module (that is, SIMO) and do not interfere with each other

together use does not affect the receiving distance.


Product Application

(1) Car door remote control switch (RKE)

(2) The remote control to open the door machine, brake, balanced car

(3) Wireless security alarm system

(4) Wireless Door Bell

(5) Wireless industrial controller

(6) Wireless data transmission







Electrical Characteristics

Condition: Ta=25°C Vcc=5.0V Frequency=433.92Mhz


Characteristics

Symbol

Condition

Value

Unit

Min

Typ

Max

Frequency

FC


433.82

433.92

434.02

MHz

Modulation Mode



ASK


Receiver Sensitivity


1K Kbps /50 Ω


-107


dBm

Data-rate




200


KHz

Current

IRC


3.7

3.9

4.1

mA

Working Voltage



3.3

5.0

5.5

V

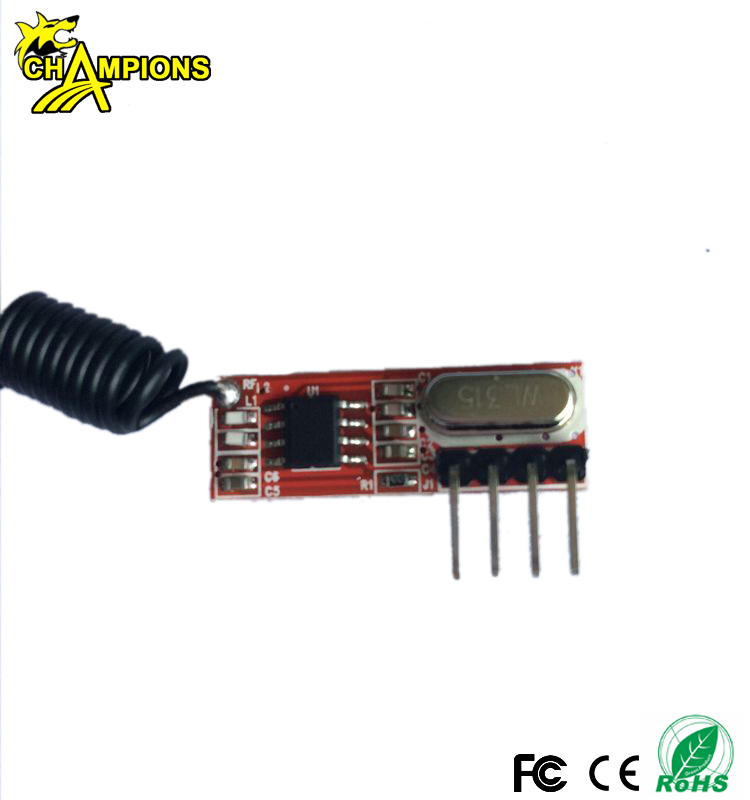

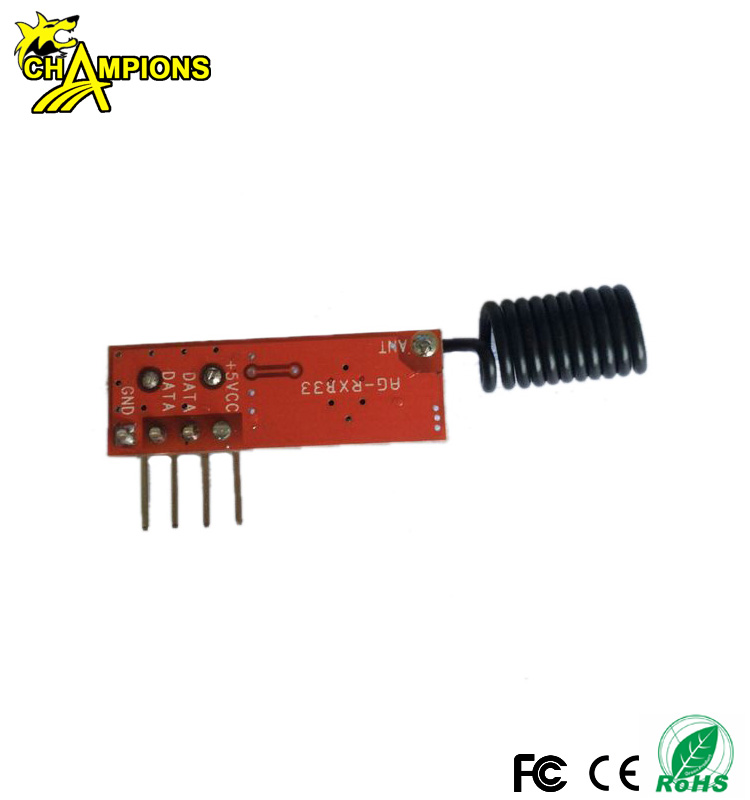

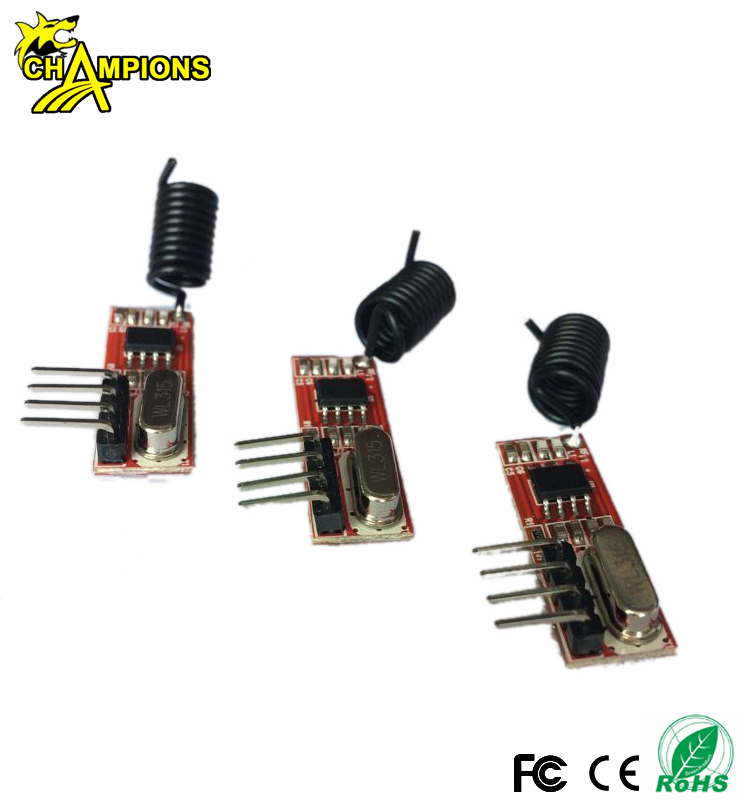

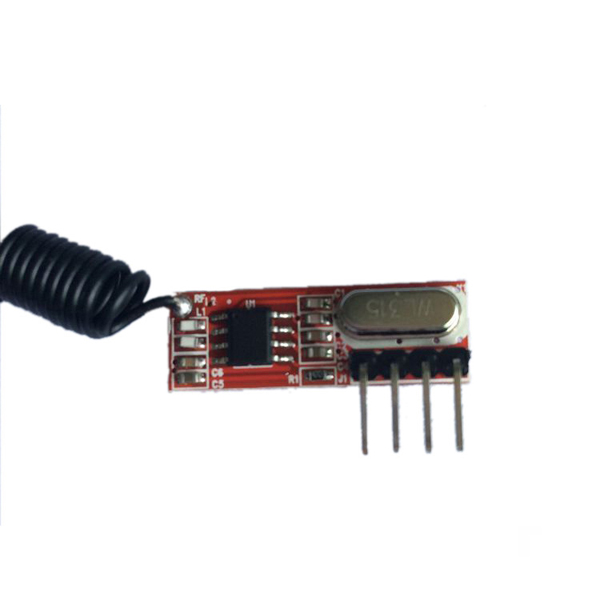

Pictures




Packaging & Shipping


Shipping

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post
You also can choose your own shipping forwarder

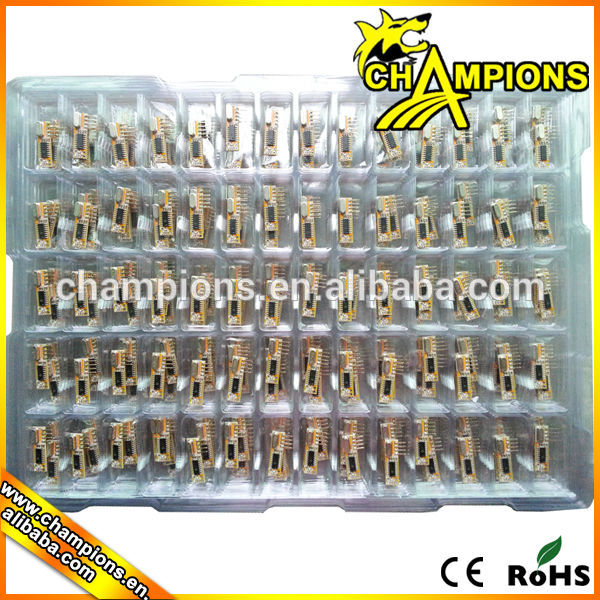

packing


Skin packing, 2500pcs in a carton, carton size: 42*30*33cm




Products & Services:

1). Your inquiry related to our products or prices will be replied in 12 hours

2). Well-trained and experienced staffs to answer all your enquires in fluent English

3). OEM & ODM, any your customized products we can help you to design and put into production

4). Protection of your sales area, ideas of design and all your private information

5).Deliver by air mail or ship for your orders


For order:

1.Payment: T/T , 30% deposit ,70% balance before shipment
2.Samples can be delivered within 7 days;
3.Discount can be offered based on your actual quantity of confirmed orders. 4.Minimum quantity:100pcs
5.Supply ability:200000pcs per month.
