433mhz 5V high quality wireless super-heterodyne ask receiving module AG-RXB1


AG-RXB1 is VHF/UHF high frequency wireless data transmission of high-quality superheterodyne receiver module.

it used in Europe were the most advanced ultra-high frequency, low noise RF integrated circuits, there are anti-static

protection and high reliability. it very easy pass the FCC/CE certification.


It is rolling code remote control,door control system, garage door as well as long distance transmission of choice.

it very stable and reliable,high sensitivity is widely used in a variety of interference,harsh environment applications.


Key Features

1). Sensitivity up to -116dBm,receiving distance is more than twice the normal receiver board

2). Reasonable receiver bandwidth, with strong co-channel rejection capability,strong anti-interference ability to adapt

 to various environments

3). Good distribution of radiation suppression,and easy through the FCC/CE

4). Good shielding,small influence of various installation environment performance of the module,and good consistency

5). Good local oscillator radiation suppression,can work with multiple modules (single income) and will not interfere with

 each other,does not affect the receiving distance

6). Using SAW LO,stable performance,wide temperature range

7). SCM direct interface,easy to implement (transfer rate up to 9.6Kbps)

8). Antenna module receivers a great effect,then the best 1/4 wavelength single copper wire

9). Antenna position also affected the reception of the module can be soldered directly to the antenna ANT interface can

 also be connected to the system via the ANT pin and then to the antenna,install the antenna stretched as far as possible,

away from the shield,high pressure,and sources of interference



1). Garage door wireless control system

2). Electric windows,barrier etc.

3). Industrial control, communications security etc. Fields

4). Low baud rate for data transmission

5). GSM/GPS car system

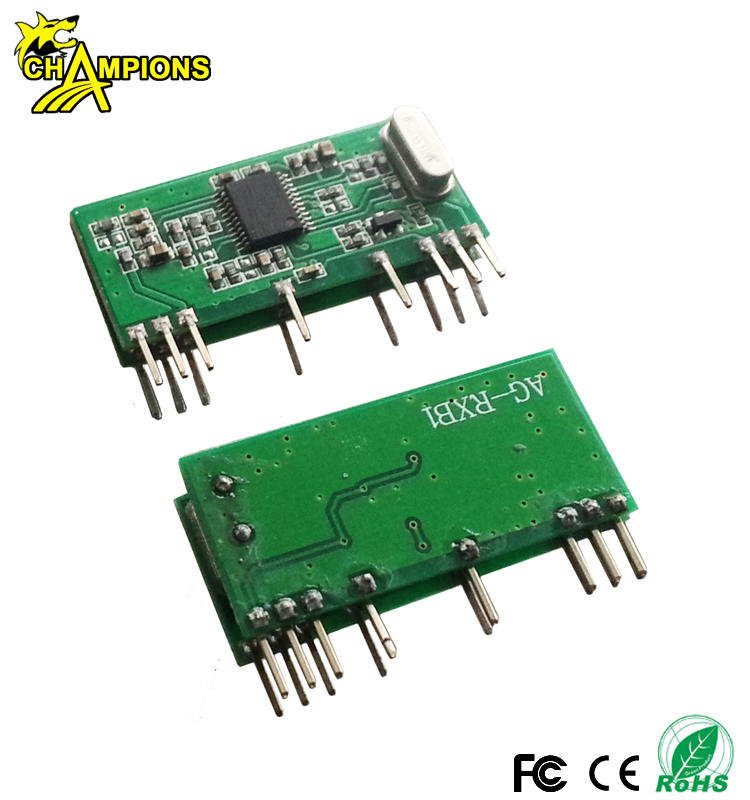

Detailed Images



Packaging & Shipping


We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder

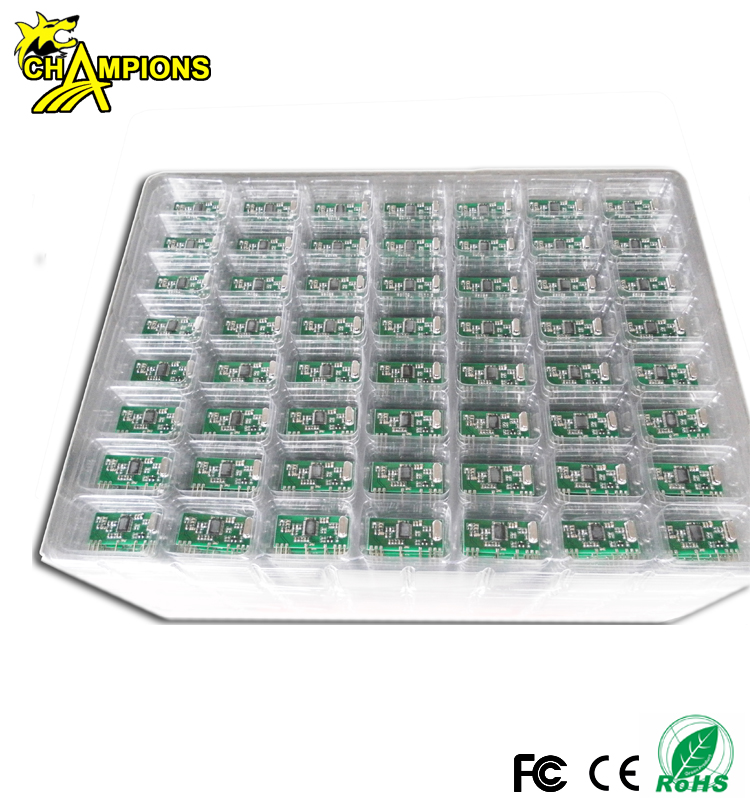

Skin packing, 5000pcs in a carton, carton size: 42*32*33cm
