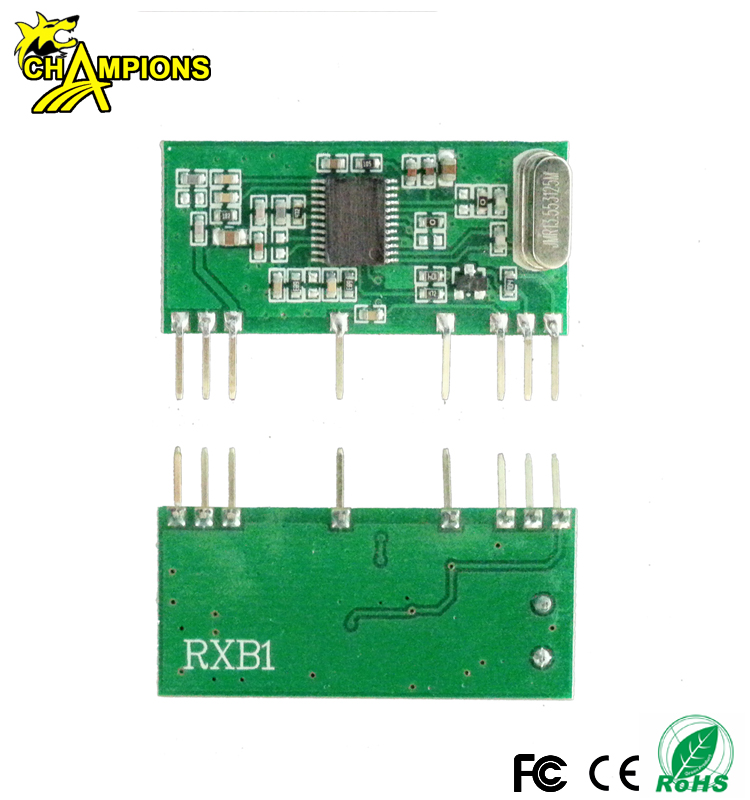

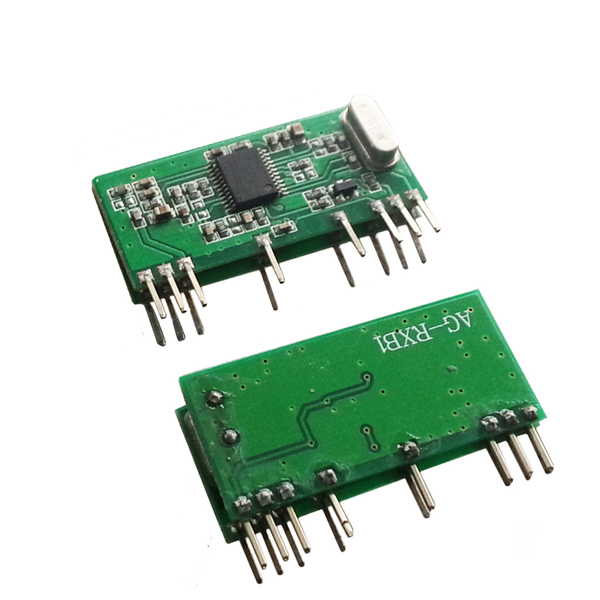

200m wireless transmitter and receiver module , 433mhz rf receiver module  5V AG-RXB1

AG-RXB1 is VHF/UHF high frequency wireless data transmission of high-quality superheterodyne receiver module. it used in Europe were

the most advanced ultra-high frequency, low noise RF integrated circuits, there are anti-static protection and high reliability. it very easy pass

the FCC/CE certification.

Key Features

1). Sensitivity up to -116dBm,receiving distance is more than twice the normal receiver board

2). Reasonable receiver bandwidth, with strong co-channel rejection capability,strong anti-interference ability to adapt to various environments

3). Good distribution of radiation suppression,and easy through the FCC/CE

4). Good shielding,small influence of various installation environment performance of the module,and good consistency

5). Good local oscillator radiation suppression,can work with multiple modules (single income) and will not interfere with each other,does

not affect the receiving distance

6). Using SAW LO,stable performance,wide temperature range

7). SCM direct interface,easy to implement (transfer rate up to 9.6Kbps)

8). Antenna module receivers a great effect,then the best 1/4 wavelength single copper wire

9). Antenna position also affected the reception of the module can be soldered directly to the antenna ANT interface can also be connected to

the system via the ANT pin and then to the antenna,install the antenna stretched as far as possible,away from the shield,high pressure,and

sources of interference


Applications

1). Garage door wireless control system

2). Electric windows,barrier etc.

3). Industrial control, communications security etc. Fields

4). Low baud rate for data transmission

5). GSM/GPS car system




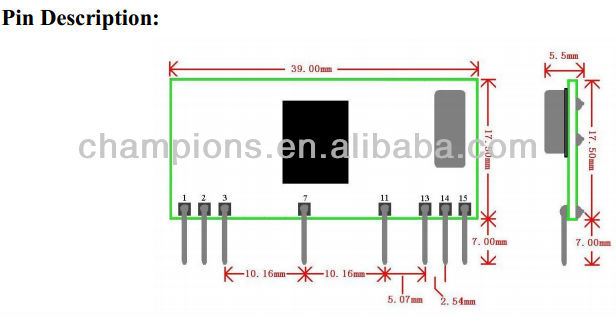

Electrical Characteristics

Condition: Ta=25°C Vcc=5.0V Frequency=433.92Mhz


Characteristics

Symbol

Condition

Value

Unit

Min

Typ

Max

Frequency

FC


315

433.92

433.92

MHz

Modulation Mode



ASK


Receiver Sensitivity


1K Kbps /50 Ω


-116/-115


dBm

Data-rate




200


KHz

Start-up time

Ton




9

ms

Current

IRC




6.3

mA

Working Voltage



2.5

5.0

5.5

V

Image Rejection


412.52MHz


20


dB

Output

High Level


RL=500K

2.8

3.75

5

V

Output

Low Level L





0.5

V

Working Temperature



-45


+85

°C


Test Instrument

Oscilloscope, Function Generator, Power and test tool (tool with 5V power supply).


Test step

1). Use shielding wire connection Oscilloscope, Function Generator and Test tool.

2). Power on the device set oscilloscope and function generator parameters (frequency and sensitivity -105dBm).

3). Receiver board voltage signal in accordance with the above tolling pin inserted oscilloscope will appear above a standard

sine wave, so for qualified products. If the wave shape shaking and no wave is defective products.

4). All the above steps to complete at the shielded room (outside have interference of radio waves affect the test standard).
